SSB Battery product overview
SSB Battery meets market demand with various battery series (SB/SBL, SBH, SBL-HR Xtreme, Grid Power, PLP) for a wide range of applications.
SSB Battery offers various series for short discharge times in high-current applications in the UPS sector as well as for applications with long autonomy times in the emergency and safety lighting sector.
The data sheets for the SSB Battery series can be found directly with the respective products or in our download center. Please note that when you click on a data sheet, you will be linked to the Battery-Kutter online shop, where different terms and conditions apply.
Other products
A large variety of other products are available on request. Please contact us for more.

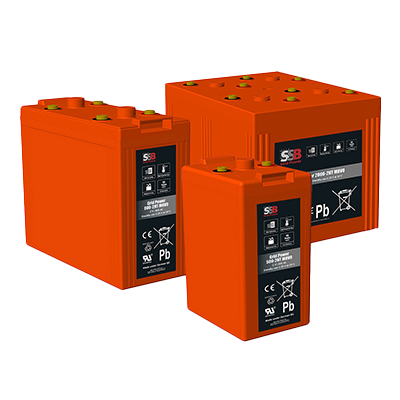

Grid Power (>12 years according to EUROBAT)
The SSB Grid Power series stands for sealed high-temperature lead-acid batteries representing an excellent product alternative to conventional sealed batteries. The high-temperature lead-acid batteries boast a compact design, high performance and a long service life of 15 years (EUROBAT classification: >12 years, Very Long Life) under extreme ambient temperatures of 35 °C. The SSB Grid Power series is absolutely maintenance-free, offers a 5-year warranty and high savings potential for energy and maintenance costs as well as a reduction of the CO2 footprint.
Applications
- Emergency power systems
- UPS systems
- CPS systems
- Emergency lighting
- Safety lighting
- Switchgear
- Emergency generator with diesel

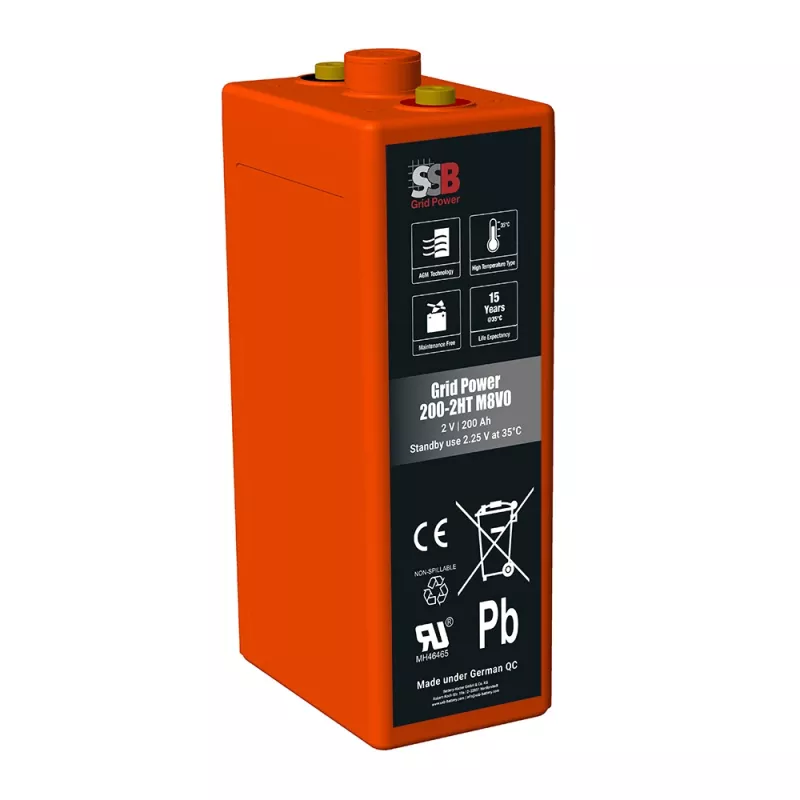

SSB Battery Grid Power 200-2HT M8V0
AGM battery | 2 V | 200 Ah (C10) | High-Temperature Series (high-temperature battery | 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 170 × 110 × 348 mm | F-M8 connector | weight: 13.5 kg
Item Number:
2037723
Description:
AGM battery | 2 V | 200 Ah (C10) | High-Temperature Series (high-temperature battery | 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 170 × 110 × 348 mm | F-M8 connector | weight: 13.5 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 200-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
200
Length (mm):
170
Width / Diameter (mm):
110
Height (mm):
348
Gross weight (kg):
13.5

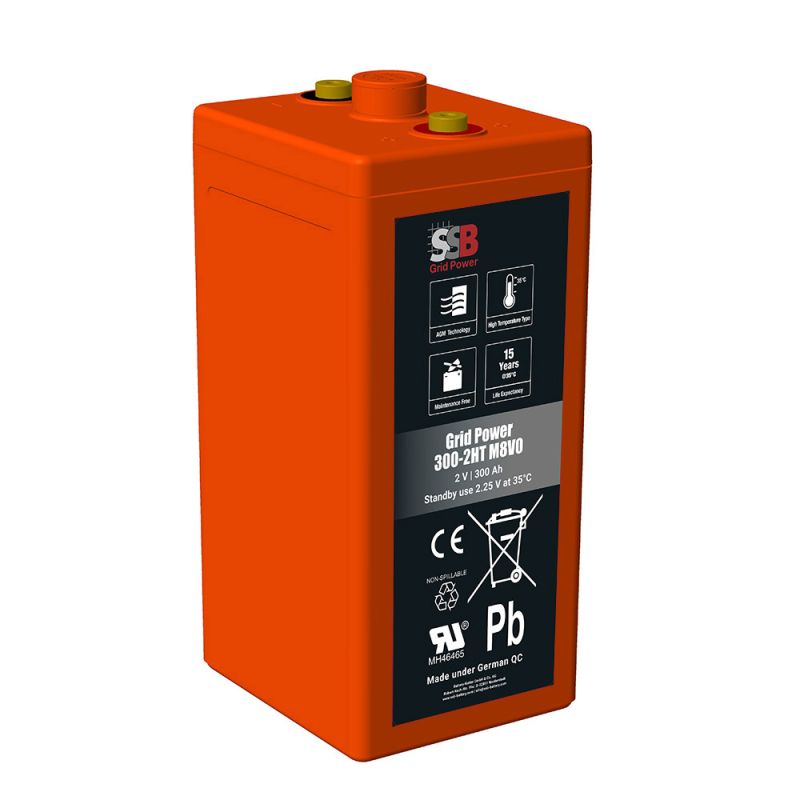

SSB Battery Grid Power 300-2HT M8V0
AGM battery | 2 V | 300 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 170 × 150 ×348 mm | F-M8 connector | weight: 18.8 kg
Item Number:
2037724
Description:
AGM battery | 2 V | 300 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 170 × 150 ×348 mm | F-M8 connector | weight: 18.8 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 300-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
300
Length (mm):
170
Width / Diameter (mm):
150
Height (mm):
348
Gross weight (kg):
18.8

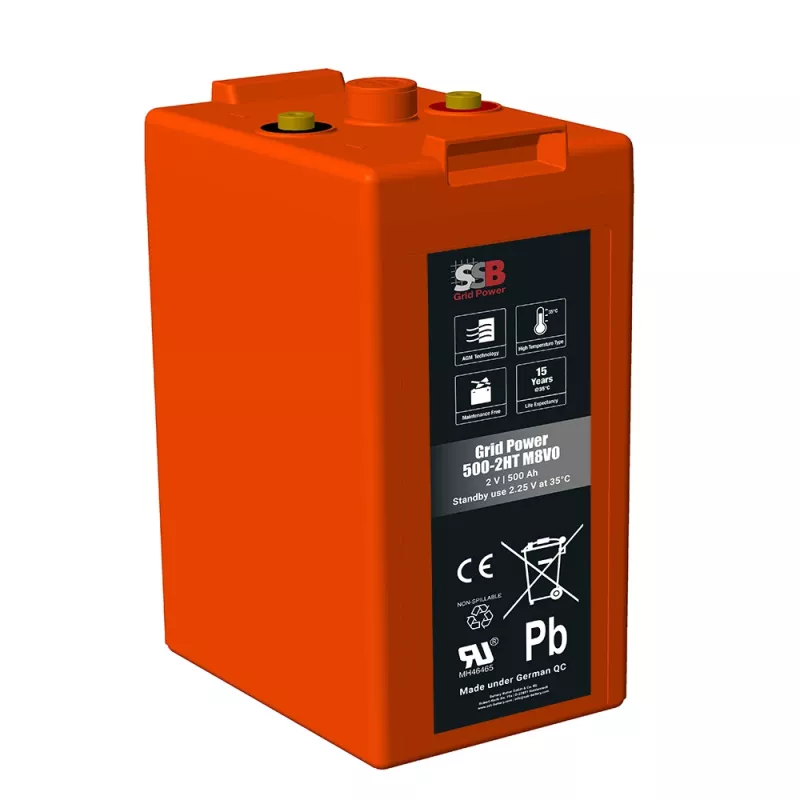

SSB Battery Grid Power 500-2HT M8V0
AGM battery | 2 V | 500 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 240 × 175 × 350 mm | F-M8 connector | weight: 30 kg Application
Item Number:
2037725
Description:
AGM battery | 2 V | 500 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 240 × 175 × 350 mm | F-M8 connector | weight: 30 kg Application
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 500-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
500
Length (mm):
240
Width / Diameter (mm):
175
Height (mm):
350
Gross weight (kg):
30

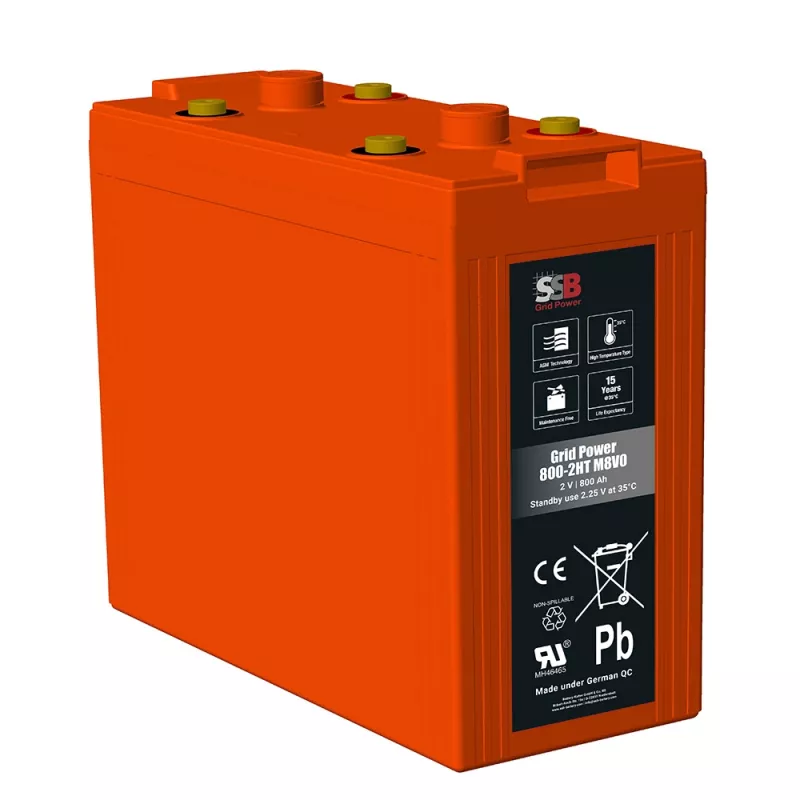

SSB Battery Grid Power 800-2HT M8V0
AGM battery | 2 V | 800 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 410 × 175 × 350 mm | F-M8 connector | weight: 50.4 kg Application
Item Number:
2037727
Description:
AGM battery | 2 V | 800 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 410 × 175 × 350 mm | F-M8 connector | weight: 50.4 kg Application
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 800-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
800
Length (mm):
410
Width / Diameter (mm):
175
Height (mm):
350
Gross weight (kg):
50.4

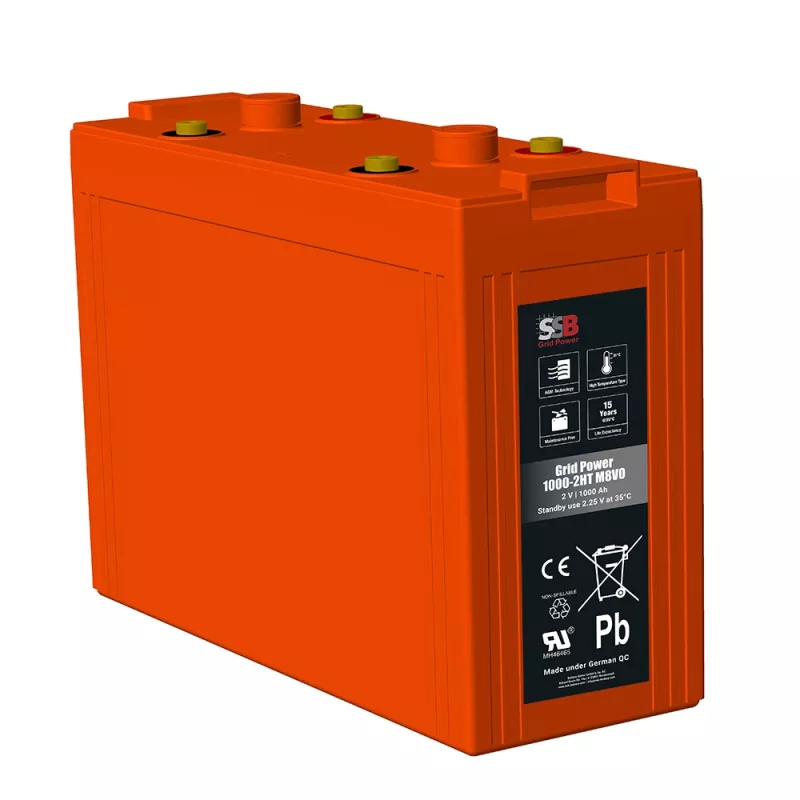

SSB Battery Grid Power 1000-2HT M8V0
AGM battery | 2 V | 1000 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 475 × 175 × 350 mm | F-M8 connector | weight: 60 kg
Item Number:
2037728
Description:
AGM battery | 2 V | 1000 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 475 × 175 × 350 mm | F-M8 connector | weight: 60 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 1000-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
1000
Length (mm):
475
Width / Diameter (mm):
175
Height (mm):
350
Gross weight (kg):
60

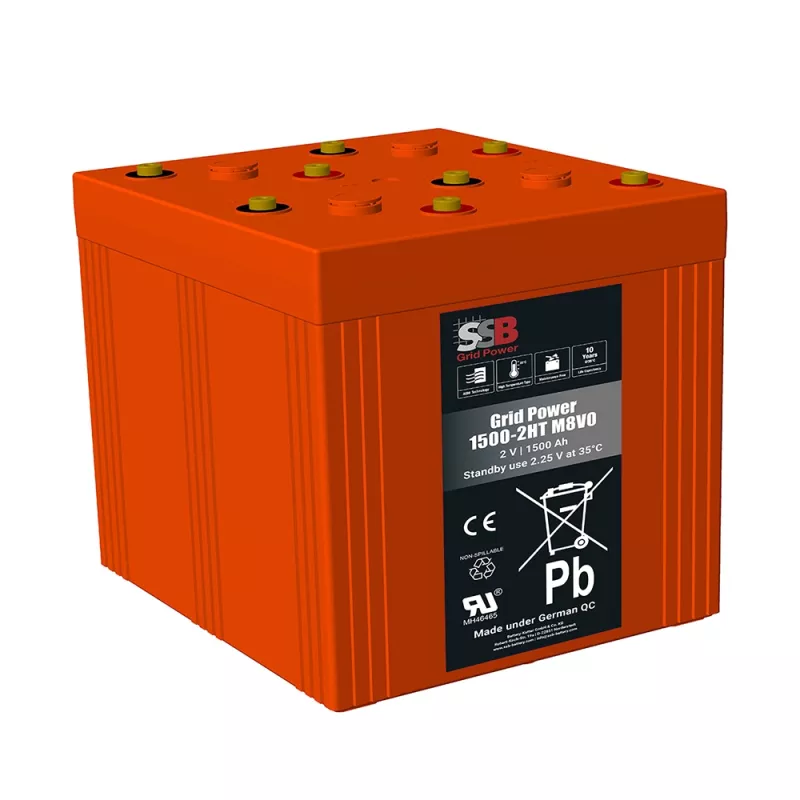

SSB Battery Grid Power 1500-2HT M8V0
AGM battery | 2 V | 1500 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 403 × 354 × 349 mm | F-M8 connector | weight: 97.5 kg
Item Number:
2037729
Description:
AGM battery | 2 V | 1500 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 403 × 354 × 349 mm | F-M8 connector | weight: 97.5 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 1500-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
1500
Length (mm):
403
Width / Diameter (mm):
354
Height (mm):
349
Gross weight (kg):
97.5

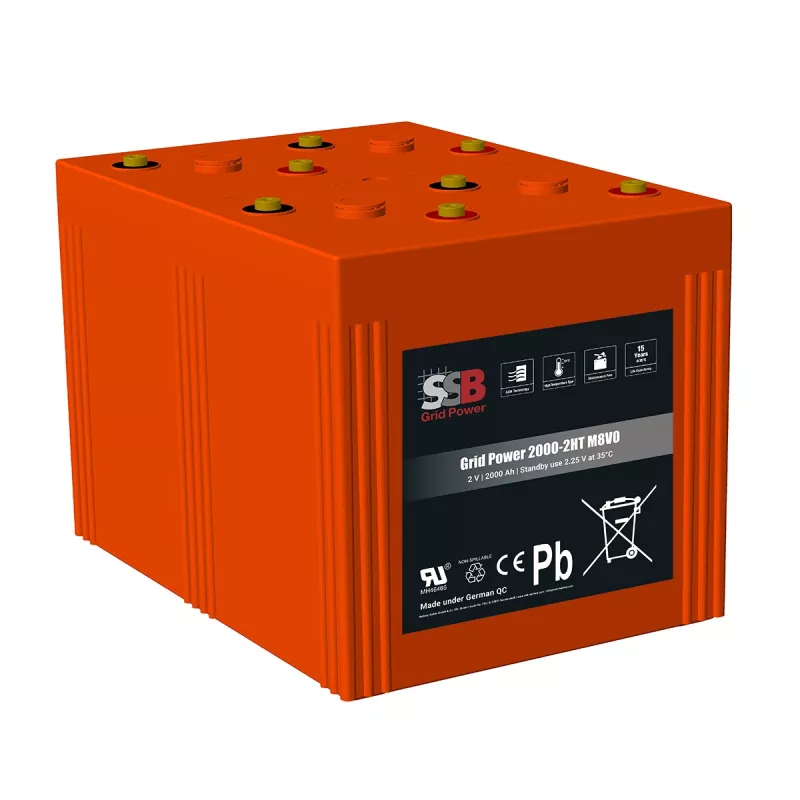

SSB Battery Grid Power 2000-2HT M8V0
AGM battery | 2 V | 2000 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 490 × 350 × 349 mm | F-M8 connector | weight: 121 kg
Item Number:
2037731
Description:
AGM battery | 2 V | 2000 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 490 × 350 × 349 mm | F-M8 connector | weight: 121 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 2000-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
2000
Length (mm):
490
Width / Diameter (mm):
350
Height (mm):
349
Gross weight (kg):
121

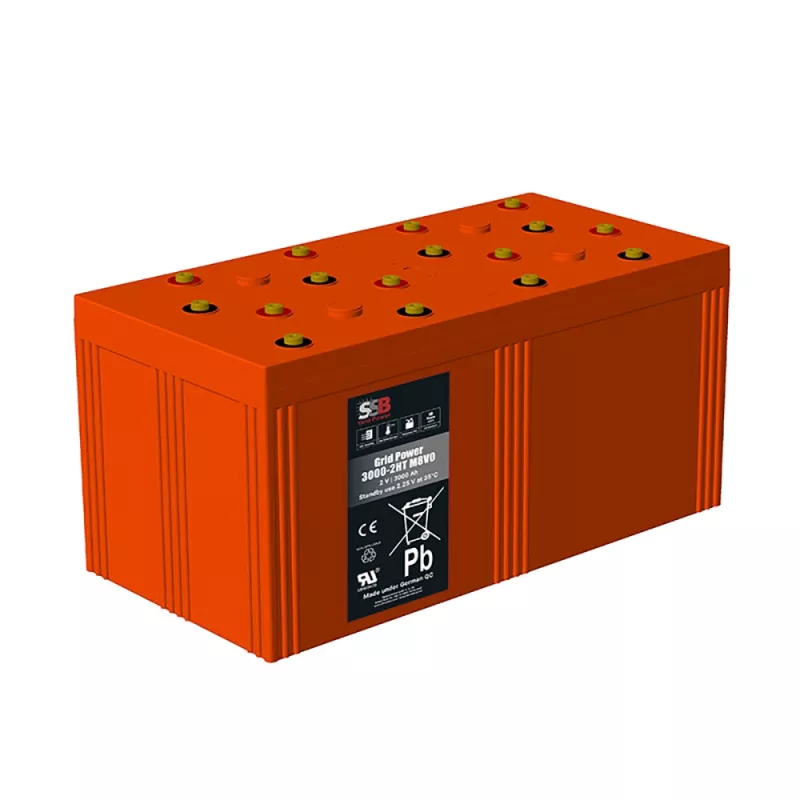

SSB Battery Grid Power 3000-2HT M8V0
AGM battery | 2 V | 3000 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 709 × 350 × 347 mm | F-M8 connector | weight: 183 kg
Item Number:
2037732
Description:
AGM battery | 2 V | 3000 Ah (C10) | High-Temperature Series (high-temperature battery; 35 °C; design life: 15 years) | sealed | maintenance free | dimensions: 709 × 350 × 347 mm | F-M8 connector | weight: 183 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery Grid Power 3000-2HT M8V0
Voltage (V):
2
Capacitance (Ah):
3000
Length (mm):
709
Width / Diameter (mm):
350
Height (mm):
347
Gross weight (kg):
183
